Hi-Fi Box Ritmus D-201

Hi-Fi Box Ritmus D-201; Videoton; (ID = 2132539) Speaker-P Hi-Fi Box Ritmus D-201; Videoton; (ID = 2132540) Speaker-P
Hi-Fi Box Ritmus D-201; Videoton; (ID = 2132541) Speaker-P Hi-Fi Box Ritmus D-201; Videoton; (ID = 2132542) Speaker-P
Hi-Fi Box Ritmus D-201; Videoton; (ID = 878126) Speaker-P Hi-Fi Box Ritmus D-201; Videoton; (ID = 2248888) Speaker-P
Use red slider bar for more.

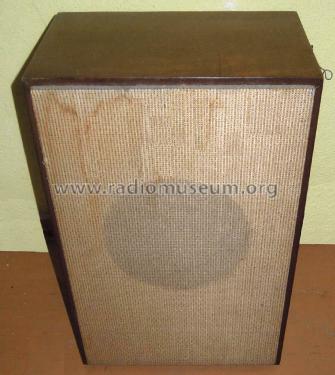

Hi-Fi Box Ritmus D-201; Videoton; (ID = 2132539) Speaker-P
Videoton;: Hi-Fi Box Ritmus D-201 [Speaker-P] ID = 2132539 1005x1122
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Fi Box Ritmus D-201, Videoton; Székesfehérvár:
Thanks for Mr.Mihály Nagy, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1972 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20.5 cm = 8.1 inch
Power out
from Radiomuseum.org Model: Hi-Fi Box Ritmus D-201 - Videoton; Székesfehérvár
Material Wooden case
Dimensions (WHD) 300 x 470 x 200 mm / 11.8 x 18.5 x 7.9 inch
Notes
  • 4, 8 or 15Ω
  • f: 60 - 16.000Hz
  • Pmax: 10W
  • speaker type: HC20/10
Source of data -- Original prospect or advert
Mentioned in Csabai D: Magnósok Évkönyve 1972.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
