Videoton;: Hordozható URH Adó-vevő - Portable FM Transceiver R-106 [Military] ID = 2260602 1400x1316

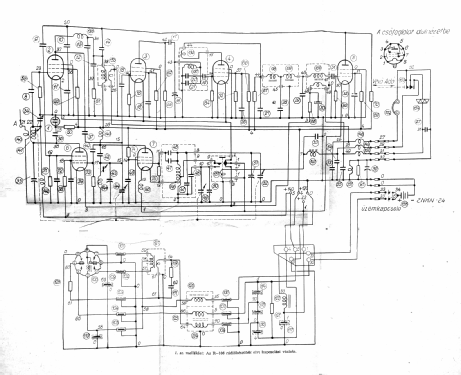

Select picture or schematic to display from thumbnails on the right and click for download.

For model Hordozható URH Adó-vevő - Portable FM Transceiver R-106, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:

Hungary

Manufacturer / Brand:

Videoton; Székesfehérvár

Brand

VTTV

Year: 1960

Category: Military Equipment (not Re, Tr or RXT)

Valves / Tubes

6: 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л 2П29Л 2П29Л

Main principle	Superheterodyne (common); ZF/IF 7300 kHz
Wave bands	VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage	Storage Battery for all (e.g. for car radios and amateur radios) / 2NKN-24; 1× 2,4 Volt
Loudspeaker	- For headphones or amp.
Power out
from Radiomuseum.org	Model: Hordozható URH Adó-vevő - Portable FM Transceiver R-106 - Videoton; Székesfehérvár
Material	Metal case
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	340 x 240 x 215 mm / 13.4 x 9.4 x 8.5 inch
Notes	Licence production of SU R-106. FM 46,1-48,65 MHz.
Net weight (2.2 lb = 1 kg)	10.8 kg / 23 lb 12.6 oz (23.789 lb)
Literature/Schematics (2)	R-106 Rádiókészülék műszaki leírása és kezelési utasítása. 1960

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
