MILITARY USSR: Mobil-Funkstation R-106 {P-106} [Commercial TRX] ID = 2439386 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mobil-Funkstation R-106 {P-106}, MILITARY USSR (different makers for same model):
Own picture. Own radio.

Country:  Soviet Union
Manufacturer / Brand:  MILITARY USSR (different makers for same model)
Year: 1955–1960 Category: Commercial Transmitter & Receiver (TRX not Amateur)

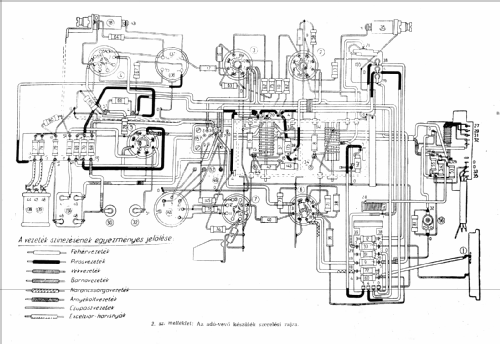

Valves / Tubes 6: 2Ж27Л 2Ж27Л 2Ж27Л 2Ж27Л 2П29Л 2П29Л
Main principle Transceiver; ZF/IF 7300 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Storage and/or dry batteries / 2,4 Volt

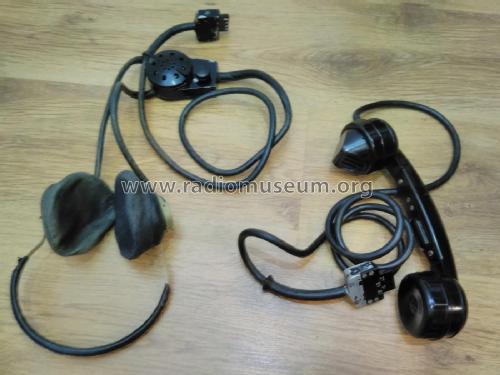

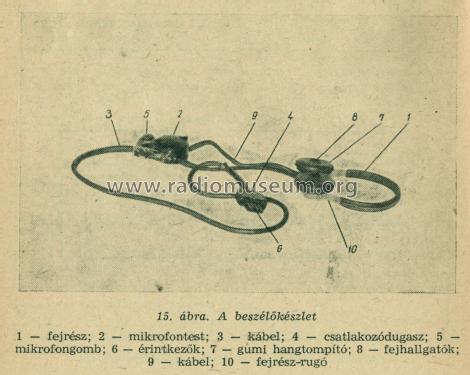

Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Mobil-Funkstation R-106 {P-106} - MILITARY USSR different makers
Material Bakelite case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 300 x 225 x 145 mm / 11.8 x 8.9 x 5.7 inch
Notes

R-106 {P-106} : Tragbares militärisches Tornisterfunkgerät,  Frequenzbereich 41,60 - 48,65 MHz,18 Kanäle mit 150 kHz Kanalabstand. Telephonie AM (A3), Sendeleistung 0,75 W.

Stromversorgung mittels 2,4 V Akkumulator 2NKN24 mit Zerhacker zur Erzeugung der Anodenspannung von 130 V für die Sendeendröhre und 110 V für die übrigen Röhren, 1,5 m Kulikow - Stabantenne oder 30 m Langdrahtantenne.

Durch Einsatz eines Pendelaudions im Gerät mit Kunststoffgehäuse trotz Aluminiumabschirmung starke Störungsanfälligkeit durch benachbarte Geräte, Ersatz um 1962 durch Funkgeräte der Serie R-105 / R-108 / R-109.

Das in der sowjetischen Armee und weiteren Streitkräften des Warschauer Vertrages eingesetzte Gerät wurde mit der ersten Gerätegeneration nach deren Aufstellung auch in der NVA der DDR eingesetzt, Einsatz von Geräten für Verbindungen innerhalb der mot. Schützenbatallione zu den Kompaniekommandanten.

R-106 {P-106} : portable military radio,  frequency coverage 41,60 - 48,65 MHz, 18 channels with 150 kHz channel spacing; telephony AM (A3), output power 0,75 W.

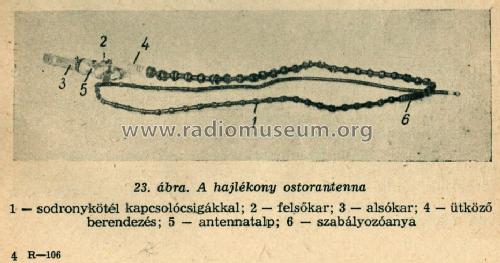

Powered by 2,4 V accumulator and vibrator for anode voltage; 1,5 m Kulikow antenna.

Used by the Soviet army, in the NVA of former German Democratic Republic and other eastern european armed forces.

Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)
Source of data -- Original-techn. papers.
Mentioned in Nachrichtentechnik der Nationalen Volksarmee, Bd. 1 (pp 55-59)
