Horizont TB642

Horizont TB642; Videoton; (ID = 1464670) Television

Horizont TB642; Videoton; (ID = 1464671) Television

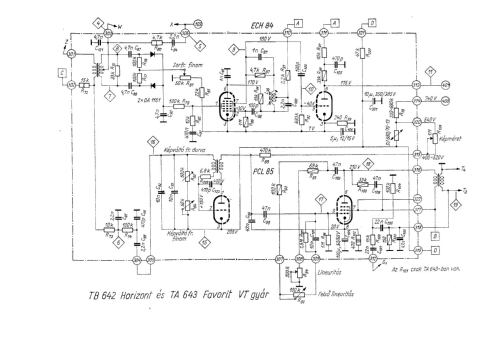

Horizont TB642; Videoton; (ID = 1464673) Television

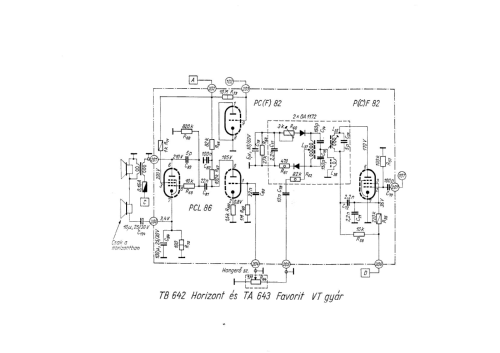

Horizont TB642; Videoton; (ID = 1464678) Television

Horizont TB642; Videoton; (ID = 1464683) Television

Horizont TB642; Videoton; (ID = 1464684) Television

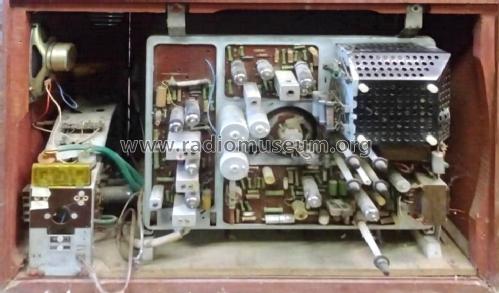

Horizont TB642; Videoton; (ID = 651311) Television Horizont TB642; Videoton; (ID = 2165690) Television
Use red slider bar for more.
Horizont TB642; Videoton; (ID = 651311) Television
Videoton;: Horizont TB642 [Television] ID = 651311 409x304
Select picture or schematic to display from thumbnails on the right and click for download.
For model Horizont TB642, Videoton; Székesfehérvár:
Radio es TVkeszulekek, 1964-66, Kadar G. 1967

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1964/1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PCC189 PCF80 EF183 EF184 PCF82 ECH84 ECH84 PCL84 PCL85 PCL86 PL500 PY88 DY86 531QQ44
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Horizont TB642 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 700 x 450 x 550 mm / 27.6 x 17.7 x 21.7 inch
Notes VHF-UHF OIRT, Speaker: 150×100 mm. Picture tube:53 cm.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Source of data Radio es Televizio Vevö keszülekek 1964-66

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
