Horizont TD652

Horizont TD652; Videoton; (ID = 2209730) Television Horizont TD652; Videoton; (ID = 2209731) Television
Horizont TD652; Videoton; (ID = 2209732) Television Horizont TD652; Videoton; (ID = 2209733) Television
Horizont TD652; Videoton; (ID = 2209734) Television Horizont TD652; Videoton; (ID = 2165695) Television
Horizont TD652; Videoton; (ID = 2209735) Television Horizont TD652; Videoton; (ID = 2209736) Television
Horizont TD652; Videoton; (ID = 2209737) Television Horizont TD652; Videoton; (ID = 651312) Television
Use red slider bar for more.

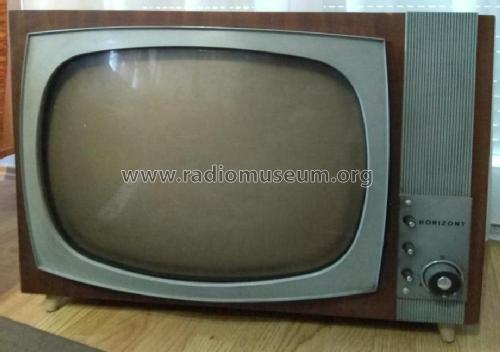

Horizont TD652; Videoton; (ID = 2209730) Television
Videoton;: Horizont TD652 [Television] ID = 2209730 920x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Horizont TD652, Videoton; Székesfehérvár:
Thanks for Mr.Tamás Kovács, Hungary, and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1965/1966 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PCC189 PCF80 EF183 EF184 PCF82 ECH84 ECH84 PCL84 PCL85 PCL86 PL500 PY88 DY86 531QQ44
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Horizont TD652 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes VHF-UHF OIRT, Speaker: 150×100 mm. Picture tube:53 cm.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
Price in first year of sale 6'100.00 HUF
Source of data Radio es Televizio Vevö keszülekek 1964-66

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
