Kolonial SE TA-5204
Use red slider bar for more.
Videoton;: Kolonial SE TA-5204 [Television] ID = 713770 735x700

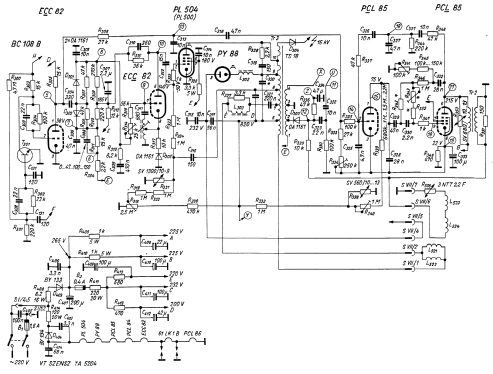

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1978 ? | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 7: ECC82 PCL84 PCL85 PCL86 PY88 PL504 61ЛК1Б | ||||
| Semiconductors (the count is only for transistors) | 10: AF139 AF139 AF139 AF239 AF239 BF198 BF199 BF199 BC107 BC108 TBA120 SAS660 SAS670 |
| Main principle | ZF/IF 38900 kHz |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: Kolonial SE TA-5204 - Videoton; Székesfehérvár |
| Material | Wooden case |
| Shape | Console with any shape - in general |
| Notes | VHF and UHF, OIRT and CCIR, 8 sensor preselection knob |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
