R545

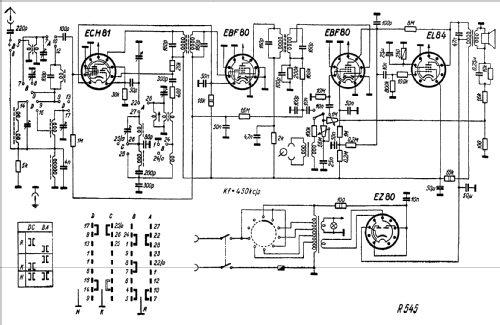

R545; Videoton; (ID = 239705) Radio
R545; Videoton; (ID = 2051897) Radio R545; Videoton; (ID = 2051899) Radio
R545; Videoton; (ID = 2051900) Radio R545; Videoton; (ID = 2051901) Radio
R545; Videoton; (ID = 1214056) Radio R545; Videoton; (ID = 694422) Radio
R545; Videoton; (ID = 406072) Radio R545; Videoton; (ID = 199763) Radio
R545; Videoton; (ID = 406071) Radio R545; Videoton; (ID = 475119) Radio
Use red slider bar for more.
R545; Videoton; (ID = 2051897) Radio
Videoton;: R545 [Radio] ID = 2051897 1400x1002
Select picture or schematic to display from thumbnails on the right and click for download.
For model R545, Videoton; Székesfehérvár:
Thanks for Mr.Ferenc Tóth, Hungary, Pomáz and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1955–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EBF80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 450 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: R545 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 250 x 180 mm / 13.4 x 9.8 x 7.1 inch
Notes Ferritantenne,Klangregler
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 1'580.00 HUF
Source of data Radio es Televizio Vevö keszülekek, 1956-57

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
