R 035 F/IV

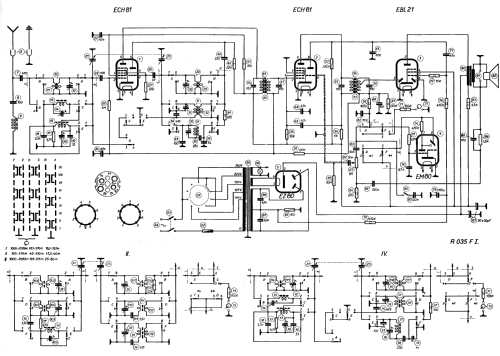

R 035 F/IV; Videoton; (ID = 1470443) Radio

R 035 F/IV; Videoton; (ID = 1470892) Radio

R 035 F/IV; Videoton; (ID = 1470893) Radio

R 035 F/IV; Videoton; (ID = 1470894) Radio

R 035 F/IV; Videoton; (ID = 1470895) Radio

R 035 F/IV; Videoton; (ID = 1470896) Radio

R 035 F/IV; Videoton; (ID = 1470897) Radio

R 035 F/IV; Videoton; (ID = 1470898) Radio

R 035 F/IV; Videoton; (ID = 1470899) Radio

R 035 F/IV; Videoton; (ID = 1470900) Radio
R 035 F/IV; Videoton; (ID = 1582584) Radio
Use red slider bar for more.
R 035 F/IV; Videoton; (ID = 1582584) Radio
Videoton;: R 035 F/IV [Radio] ID = 1582584 933x1318
Select picture or schematic to display from thumbnails on the right and click for download.
For model R 035 F/IV, Videoton; Székesfehérvár:
Thanks for Mr.Tóth Ferenc, Hungary, Pomáz and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 ECH81 EBL21 EZ80 EM80
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 1.5 W (undistorted)
from Radiomuseum.org Model: R 035 F/IV - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 285 x 195 mm / 16.5 x 11.2 x 7.7 inch
Notes

SW:25-80 m.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 1'800.00 HUF
Source of data Radio es Televizio Vevö Keszülekek, 1960-63

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
