For model My Lady Anne CN430, Vidor Ltd.; Erith (Kent):

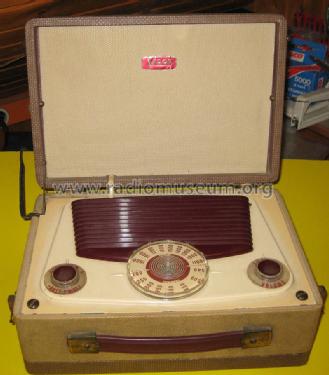

This sort of radio was popular in the 50’s with those who wanted to go places and take their music with them. It works on 240v mains and a Vidor battery with combined 90v & 7.5v. Special valves were used to minimise the drain on the batteries.

Country:  Great Britain (UK)
Manufacturer / Brand:  Vidor Ltd.; Erith (Kent)
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 200-250 or 7.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: My Lady Anne CN430 - Vidor Ltd.; Erith Kent
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 118 x 200 mm / 11.4 x 4.6 x 7.9 inch
Notes

Im Deckel eingebaute Rahmenantenne./ Frame aerial in the lid.

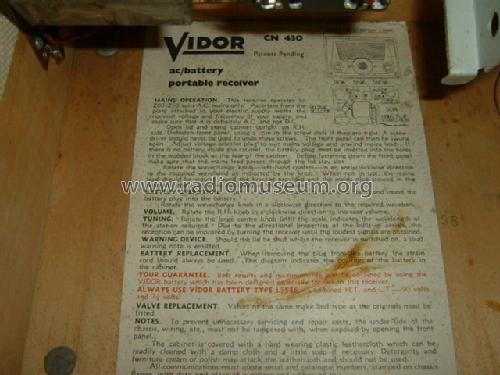

Earlier official Vidor L5546 battery using "W" connector is slightly different in size (3" x 3.5" x 3.5") to Vidor L5550  /Ever Ready B148  (2.75" x 3.5" x 3.5") But GEC does suggest the BB548 (=B148 & L5550). Later models do list Vidor battery L5550 in case.

Space to wind mains flex.

Lid switch "howls" to remind you rather than switching off power.

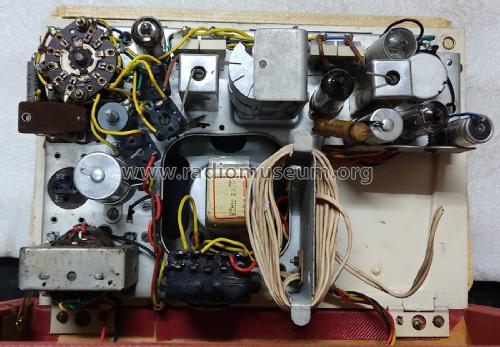

The tuning knob has a screw clamp under the chassis plate, accessible from front edge, but the other knobs are "push on" (lever from under side to avoid breakage).

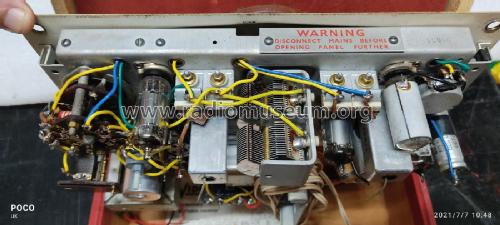

Metal Rectifier and Isolated mains transformer but resistive dropper from HT for LT.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 14.00 £
Collectors' prices
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (Nr. 1215, 10 September 1955)

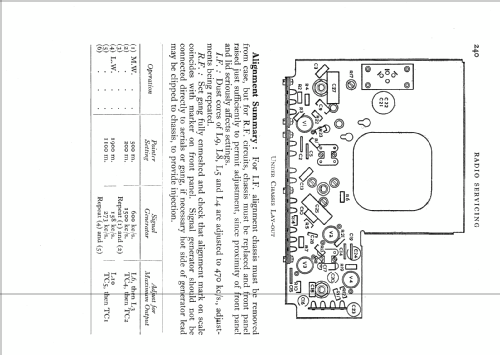

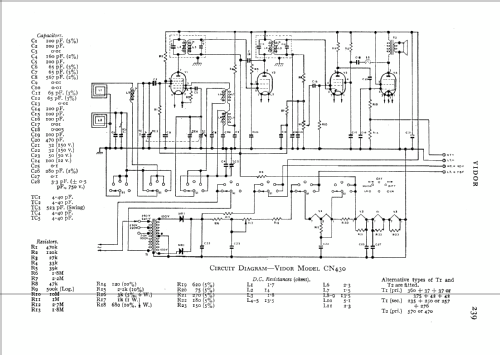

Literature/Schematics (2) Radio And Television Servicing books (R&TVS) (Pages 238-240)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Vidor Ltd.; Erith (Kent)
Here you find 142 models, 75 with images and 72 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Vidor Ltd.; Erith: My Lady Anne CN430
Threads: 1 | Posts: 1
Hits: 2336     Replies: 0
vidor: CN430; My Lady Anne
Klaus Bayer
16.Jun.06
  1 Hallo,
habe gerade ein solches Gerät repariert.
Der AÜ ein EI42 war defekt. Es läßt sich ohne Probleme ein beschaffbarer M42 einbauen.
Noch ein Tipp. Die Knöpfe lassen sich leicht entfernen, wenn ein langer Schraubenzieher unter
dem Chassis mit drückt.
Der Senderknopf ist mit einer Schelle auf der Drehkoachse festgeschraubt, die Schraube
erreicht man unterhalb des Chassis durch eine Öffnung.
Die wieder erreichte Leistung des Radios ist erstaunlich.

Gruß Klaus
