• Country
• Spain

• Manufacturer / Brand
• Virer Radio, Talleres Radioeléctricos Virer, V. Nácher; Barcelona

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153009

• Number of Tubes
• 4

• Valves / Tubes
• UCH42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

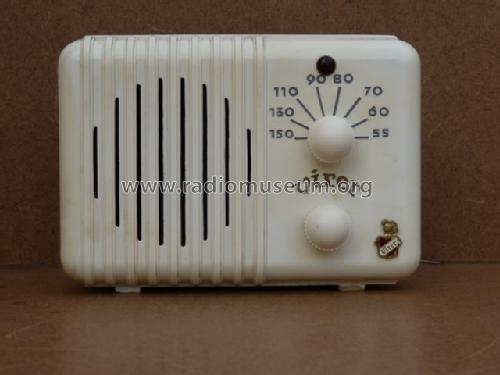

• Model: Peque - Virer Radio, Talleres

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 147 x 105 x 80 mm / 5.8 x 4.1 x 3.1 inch

• Net weight (2.2 lb = 1 kg)
• 0.930 kg / 2 lb 0.8 oz (2.048 lb)

• Price in first year of sale
• 973.00 ESP

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
