• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176498

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

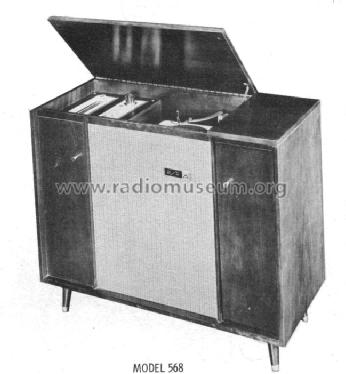

  • Model: 568 - V-M VM Voice of Music
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

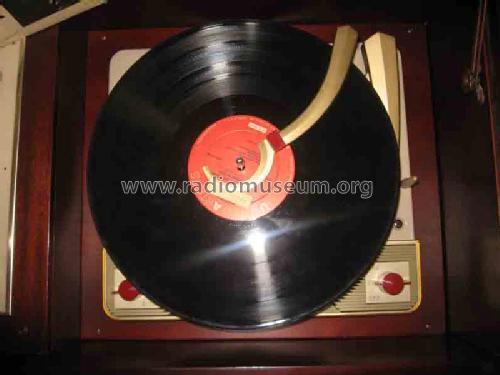

  • The V-M Corp. Model 568 is an AC operated 12 tube FM-AM Tuner, Amplifier and 4 speed automatic record changer.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
