• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166563

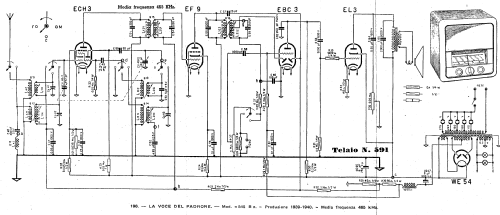

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 WE54

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 160; 220; 275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 545B Ch= 591 - La Voce del Padrone; Milano

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 360 x 370 x 295 mm / 14.2 x 14.6 x 11.6 inch

• Notes

• Onde medie da 520 a 1560 kHz, onde corte da 14 à 50 m. Controreazione in BF. Altoparlante ellittico 28 x 14 cm.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 1,290.00 LIT

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• D.E. Ravalico, Il Radio Libro, 7° edizione, Hoepli

• Literature/Schematics (2)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (VI edizione 1942)

• Author
• Model page created by Enrico Puccini. See "Data change" for further contributors.
