• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97054

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 41 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage

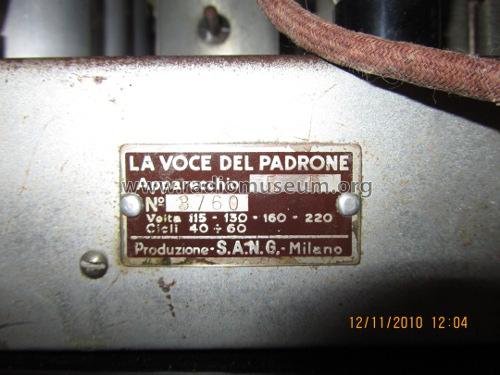

• Alternating Current supply (AC) / 110; 130; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

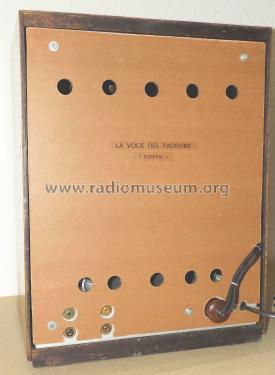

• Model: Esperia - La Voce del Padrone; Milano

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Controllo di tono. Ingresso per giradischi.

• Price in first year of sale
• 850.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

• Literature/Schematics (2)
• -- Schematic (Il Radio Libro D.E. Ravalico Hoepli editore 1935.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
