Alpinist {Алпинист} 321

Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 1514381) Radio
Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 2326205) Radio Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 2326208) Radio
Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 195535) Radio Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 1051964) Radio
Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 195534) Radio Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 195536) Radio

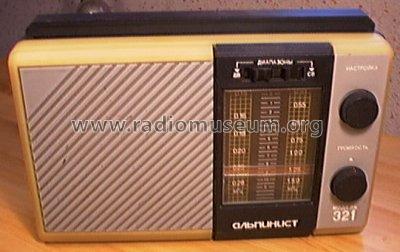

Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 214217) Radio Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 838442) Radio
Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 1514163) Radio Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 1514164) Radio
Use red slider bar for more.
Alpinist {Алпинист} 321; Voronezh POLIUS (ID = 2326205) Radio
Voronezh POLIUS: Alpinist {Алпинист} 321 [Radio] ID = 2326205 1024x909
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpinist {Алпинист} 321, Voronezh POLIUS Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Voronezh POLIUS Radio Works
Year: 1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: КТ814 КТ837 КТ817
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Alpinist {Алпинист} 321 - Voronezh POLIUS Radio Works
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 230 x 142 x 56 mm / 9.1 x 5.6 x 2.2 inch
Notes Separate 220/6V supply block BP-A1 complete.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 39.00 RUR
Mentioned in - - Data from my own collection

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
