Alpinist {Алпинист} 407 Olympiada-80

Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702761) Radio

Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702770) Radio
Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702762) Radio Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702771) Radio
Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702769) Radio Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702766) Radio
Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702767) Radio Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 831808) Radio
Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 981982) Radio Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 1637478) Radio
Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 1637483) Radio Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 1637485) Radio
Use red slider bar for more.

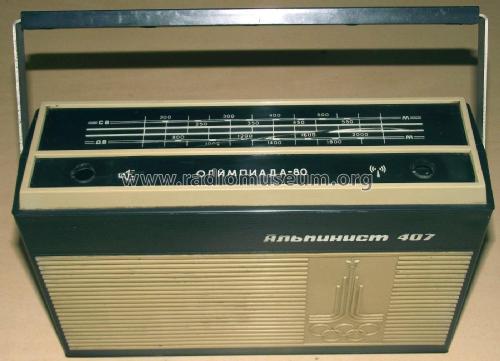

Alpinist {Алпинист} 407; Voronezh POLIUS (ID = 702762) Radio
Voronezh POLIUS: Alpinist {Алпинист} 407 [Radio] ID = 702762 683x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpinist {Алпинист} 407 Olympiada-80, Voronezh POLIUS Radio Works:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Voronezh POLIUS Radio Works
Year: 1976–1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 / 6x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Alpinist {Алпинист} 407 [Olympiada-80] - Voronezh POLIUS Radio Works
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 260 x 180 x 70 mm / 10.2 x 7.1 x 2.8 inch
Notes Sondermodell anlässlich der Sommerolympiade 1980 in Moskau herausgegeben. Anschlüsse für Antenne, Erde, Telefon, 9 Volt Gleichspannung. Endstufe in Gegentakt-B-Schaltung mit 2x GT402A
Same schema as radio Alpinist-407 (see RMorg). Model dedicated to Moscow-80 Olympic games.
Net weight (2.2 lb = 1 kg) 1.320 kg / 2 lb 14.5 oz (2.907 lb)
Price in first year of sale 32.00 Rubel
Literature/Schematics (1) -- Schematic

Model page created by Wolfgang Lill. See "Data change" for further contributors.
