74A

74A; Waldorp, N.V. Ned. (ID = 702804) Radio

74A; Waldorp, N.V. Ned. (ID = 709108) Radio

74A; Waldorp, N.V. Ned. (ID = 709109) Radio
Use red slider bar for more.
74A; Waldorp, N.V. Ned. (ID = 702804) Radio

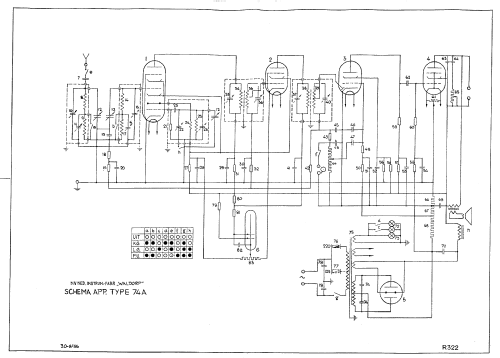

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Netherlands
Manufacturer / Brand:  Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner

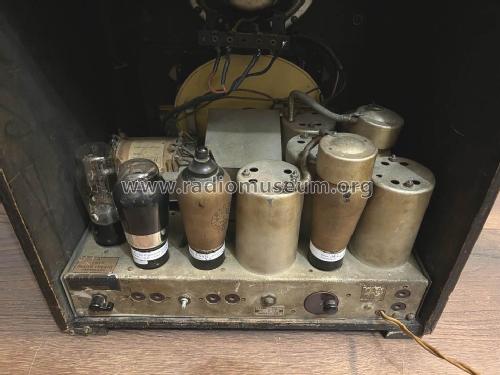

Valves / Tubes 5: AK1 AF2 E444 E443H 4662 1823
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 130; 220 Volt

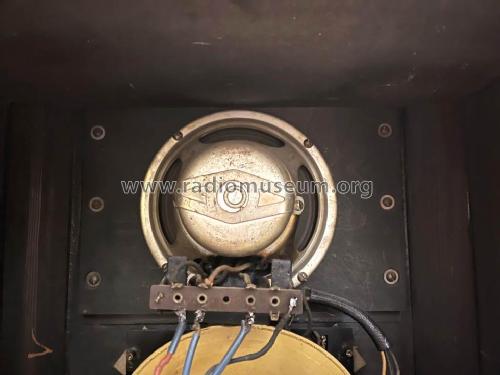

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 74A - Waldorp, N.V. Ned.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Glimm-Abstimmanzeige Philips 4662.
Price in first year of sale 160.00 FL
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Folkert Rothe. See "Data change" for further contributors.
