AC5075-XT

AC5075-XT ; Wallace, Ted; London (ID = 2475466) Ampl/Mixer
AC5075-XT ; Wallace, Ted; London (ID = 2475471) Ampl/Mixer AC5075-XT ; Wallace, Ted; London (ID = 2475470) Ampl/Mixer

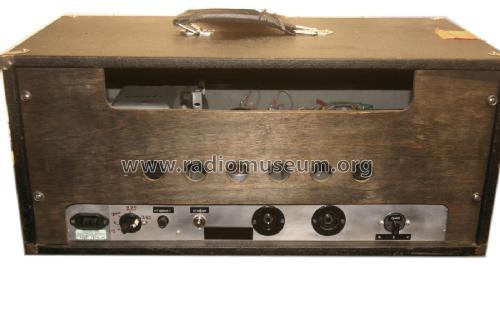

AC5075-XT ; Wallace, Ted; London (ID = 2475472) Ampl/Mixer AC5075-XT ; Wallace, Ted; London (ID = 2475469) Ampl/Mixer
Use red slider bar for more.
AC5075-XT ; Wallace, Ted; London (ID = 2475471) Ampl/Mixer
Wallace, Ted; London: AC5075-XT [Ampl/Mixer] ID = 2475471 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC5075-XT, Wallace, Ted; London:
Wallace AC5075-XT Front

Country:  Great Britain (UK)
Manufacturer / Brand:  Wallace, Ted; London
Year: 1965 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 7: EF86 EF86 ECC81 ECC81 ECC82 KT88 KT88
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 75 W (80 W max.)
from Radiomuseum.org Model: AC5075-XT - Wallace, Ted; London
Material Leather / canvas / plastic - over other material
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)

Model page created by Nick Barton. See "Data change" for further contributors.



All listed radios etc. from Wallace, Ted; London
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
