TK-1848L
Use red slider bar for more.

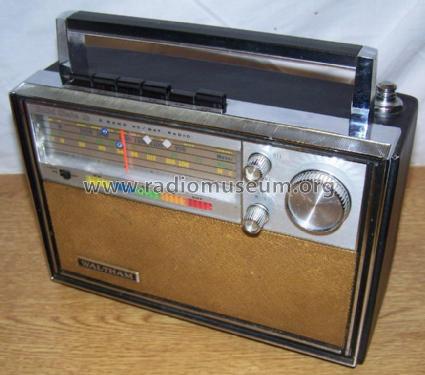

Waltham S.A., Genf: TK-1848L [Radio] ID = 2054815 872x768
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Waltham | ||||
|---|---|---|---|---|---|
| Year: 1968 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 18: |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Line / Batteries (any type) / 240/ 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 0.6 W (unknown quality) |
| from Radiomuseum.org | Model: TK-1848L - Waltham S.A., Genf |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |

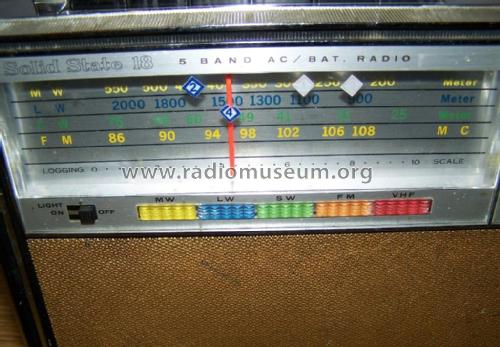

| Notes | Waltham TK-1848L Solid State 5 Band 18 Transistor AC/Batt. Radio; Coverage: MW: 550 - 200 m = 545 - 1500 KHz, LW: 2000 - 900 m = 150 - 333 KHz, SW: 75 - 25 m = 4.0 - 12.0 MHz, FM: 86 - 108 MHz, VHF: 108 - 175 MHz, dial light, indicators for each band, earphone & audio out, made in Japan for the UK market, compare with partly similar Candle TK-1848 but different coverage. |
| Source of data | -- Collector info (Sammler) |
Model page created by a member from A. See "Data change" for further contributors.
