Netzeinheit NE-171

Wandel & Goltermann; Reutlingen

  • Year
  • 1957
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 106001
    • alternative name: Wago Wandel & Goltermann

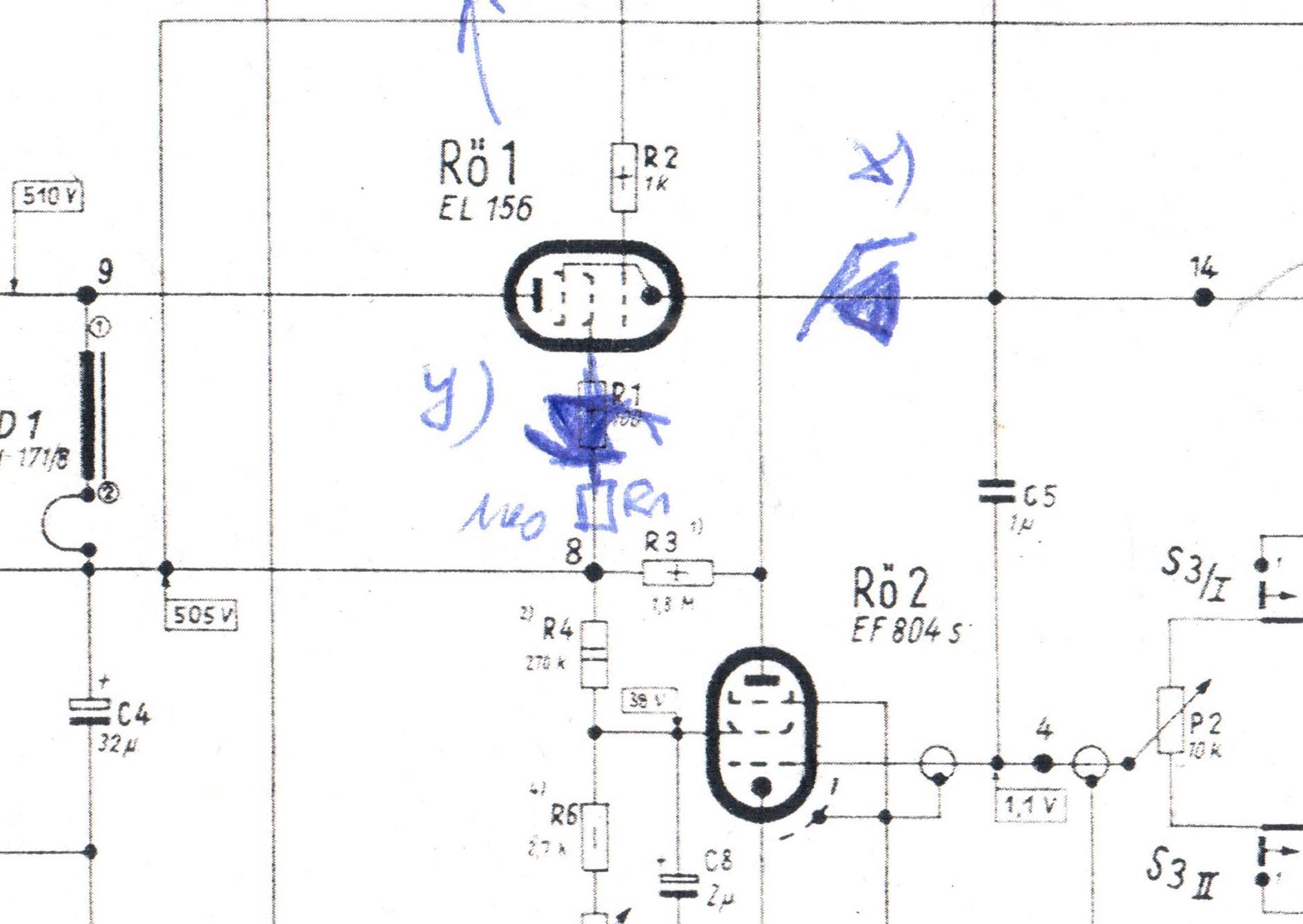

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Netzeinheit NE-171 - Wandel & Goltermann;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 130 x 300 x 250 mm / 5.1 x 11.8 x 9.8 inch
  • Notes
  • Netzteil mit stabilisierten 0-50 V und dazuschaltbaren 50, 100, 150, 200, 250 V/0,1 A DC. Weiterhin 0-10 V DC oder 0-100 V DC. Weiterhin 6,3V/3A AC, 4 + 6,3 V/3 A AC, 18 + 20 V/1 A AC.
  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Price in first year of sale
  • 680.00 DM
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Willi Ribbe. See "Data change" for further contributors.
