Wartime Civilian Receiver Utility Set single band

Wartime Joint Enterprise

Daten

Forum

Bilder

Sammlungen

Land
Grossbritannien (UK)

Hersteller / Marke
Wartime Joint Enterprise

Jahr
1944/1945

Kategorie
Rundfunkempfänger (Radio - oder Tuner nach WW2)

Radiomuseum.org ID
78262

Bilder
Schaltpläne

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2538037) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (3)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2538040) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (3)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2538041) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (3)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2538042) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (3)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2537894) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (3)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 107202) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 107220) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 107217) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 107218) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 107219) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 305601) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 305602) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 572805) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 572806) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1455932) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1840454) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1840455) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1840456) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1840457) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1840458) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1840478) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1953862) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

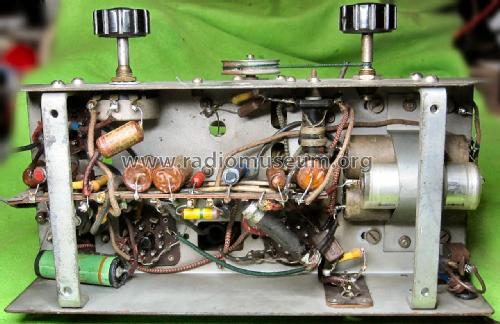

chassis before restoration

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 1953863) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2533691) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2533713) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Wartime Civilian Receiver Utility Set; Wartime Joint (ID = 2533720) Radio — Wartime Joint Wartime Civilian Receiver Utility Set (1)

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

Technische Daten

Anzahl Röhren
4

Röhren
BVA276 BVA243 BVA267 BVA211

Anzahl Transistoren

Halbleiter
WX6

Hauptprinzip
Superhet allgemein; 1 NF-Stufe(n)

Anzahl Kreise
6 Kreis(e) AM

Wellenbereiche
Mittelwelle, keine anderen.

Betriebsart / Volt
Wechselstromspeisung / 200-250 Volt

Lautsprecher
Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 17 cm = 6.7 inch

Material
Gerät mit Holzgehäuse

von Radiomuseum.org
Modell: Wartime Civilian Receiver Utility Set [single band] - Wartime Joint Enterprise

Form
Tischgerät, Hochformat (höher als quadratisch, schlicht, keine Kathedrale).

Abmessungen (BHT)
12 x 13.5 x 6.5 inch / 305 x 343 x 165 mm

Bemerkung
Wartime civilian receiver (AC), made by Wartime Joint Enterprise, British, 1944-1945.

To overcome the shortage of broadcast receivers that developed during the Second World War, a collection of 44 British electronics and radio manufacturers came together under the banner of 'Joint Wartime Enterprise', and sponsored by the British Government, to build the "wartime civilian receiver" also known as the "utility set." The "utility set" was an inexpensive radio receiver built to a standard design by several manufacturers and for which spare parts would be easily available and could come from any manufacturer. In total, over a quarter of a million sets were produced.

Both Battery and AC mains versions were manufactured.

The radios were designed by Dr. G. D. Reynold of Murphy Radio Ltd. and those made by Murphy bore the manufacturer code U7.

They were released in June 1944 with the Battery table model at £10 19s. 0d. (inclusive of purchase tax) and the Mains table model at £12 3s. 4d. inclusive of purchase tax).

Originalpreis
12.17

Datenherkunft
-- Collector info (Sammler)

Literaturnachweis
Radio! Radio!

Autor
Modellseite von Konrad Birkner † 12.08.2014 angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
