• Country
• United States of America (USA)

• Manufacturer / Brand
• Warwick Mfg. Corp., Chicago (Clarion)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204276

• • alternative name: Templeton

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

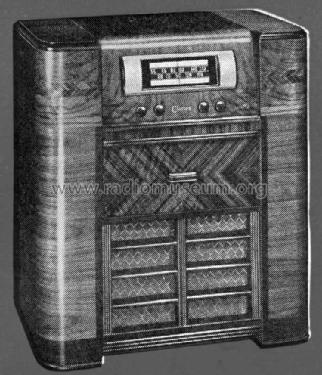

• Model: Clarion C-107 The Fleetwood - Warwick Mfg. Corp., Chicago

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 31.5 x 35.125 x 0 mm / 1.2 x 1.4 x 0 inch

• Mentioned in

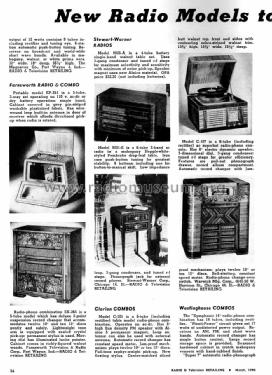

• Radio Retailing (Radio & Television R.) (January 1946 page 102. March 1946 page 36. June 1946 page 97.)

• Literature/Schematics (3)
• Clarion Folder Form 102 for 1946.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 472 models, 77 with images and 435 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
