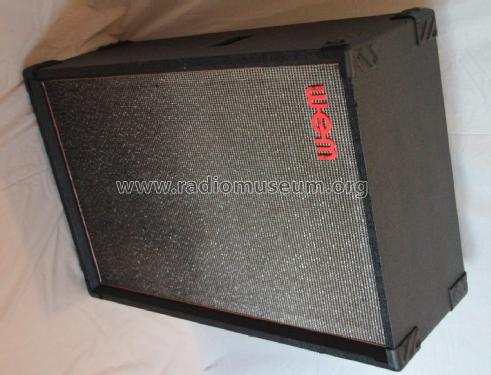

Starfinder 100 with Goodmans Speaker

Starfinder 100; Watkins Electric (ID = 1806522) Speaker-P Starfinder 100; Watkins Electric (ID = 1806523) Speaker-P
Starfinder 100; Watkins Electric (ID = 1806525) Speaker-P Starfinder 100; Watkins Electric (ID = 1806526) Speaker-P
Starfinder 100; Watkins Electric (ID = 1806528) Speaker-P Starfinder 100; Watkins Electric (ID = 1806529) Speaker-P
Starfinder 100; Watkins Electric (ID = 1806530) Speaker-P
Use red slider bar for more.
Starfinder 100; Watkins Electric (ID = 1806522) Speaker-P
Watkins Electric: Starfinder 100 [Speaker-P] ID = 1806522 1400x945
Select picture or schematic to display from thumbnails on the right and click for download.
For model Starfinder 100 with Goodmans Speaker, Watkins Electric Music; GB (WEM)

Country:  Great Britain (UK)
Manufacturer / Brand:  Watkins Electric Music; GB (WEM)
Year: 1972 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 inch = 45.7 cm
Power out
from Radiomuseum.org Model: Starfinder 100 [with Goodmans Speaker] - Watkins Electric Music; GB WEM
Material Wooden case
Dimensions (WHD) 590 x 910 x 310 mm / 23.2 x 35.8 x 12.2 inch
Notes

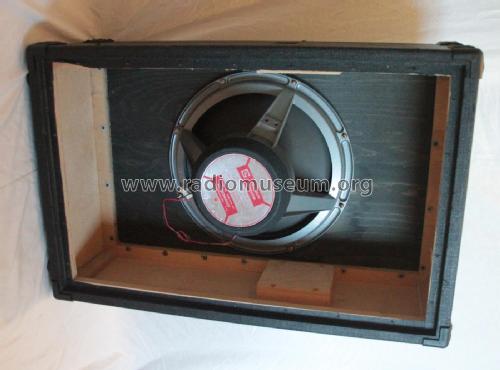

Speaker system intended for use with Bass Guitar, this model is fitted with Goodmans 18" Audiom 18-P speaker.
Power handling 120 watts, impedance 6 Ohms.

Some models were fitted with Celestion G18 C 18" Speaker.

Power handling 60 watts, impedance 12 Ohms.

Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
