- Country
- Italy
- Manufacturer / Brand
- Watt Radio; Torino
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98020
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org

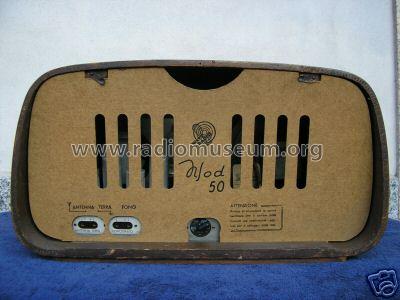

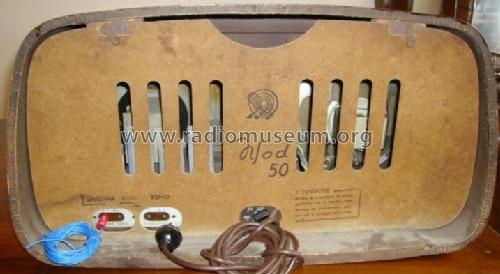

- Model: 50 - Watt Radio; Torino
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 310 x 240 mm / 22.8 x 12.2 x 9.4 inch
- Source of data
- Guida Pratica Antique Radio V (2003)
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 389)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
