• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30828

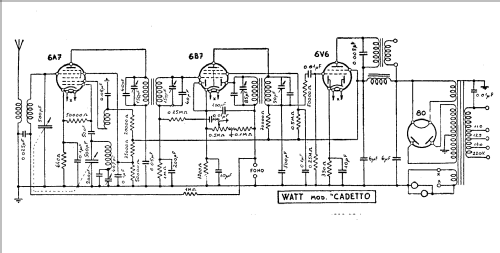

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A7 6B7 6V6 80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

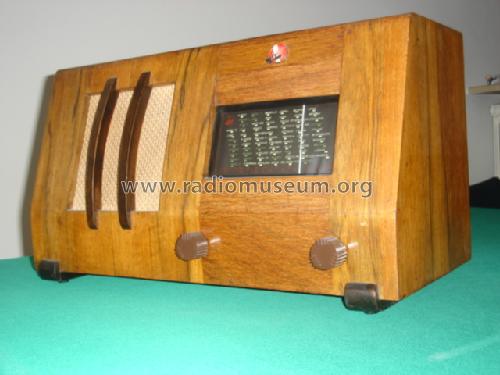

• Model: Cadetto - Watt Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 300 x 250 mm / 21.7 x 11.8 x 9.8 inch

• Notes

• Regolazione del volume sulla Frequenza Intermedia.
  Ingresso Fono.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
