Imperiale

Imperiale ; Watt Radio; Torino (ID = 218609) Radio
Imperiale ; Watt Radio; Torino (ID = 2485062) Radio Imperiale ; Watt Radio; Torino (ID = 702983) Radio
Imperiale ; Watt Radio; Torino (ID = 702982) Radio Imperiale ; Watt Radio; Torino (ID = 224078) Radio
Imperiale ; Watt Radio; Torino (ID = 956511) Radio Imperiale ; Watt Radio; Torino (ID = 956512) Radio
Imperiale ; Watt Radio; Torino (ID = 1291140) Radio Imperiale ; Watt Radio; Torino (ID = 1291141) Radio
Imperiale ; Watt Radio; Torino (ID = 1291142) Radio
Use red slider bar for more.

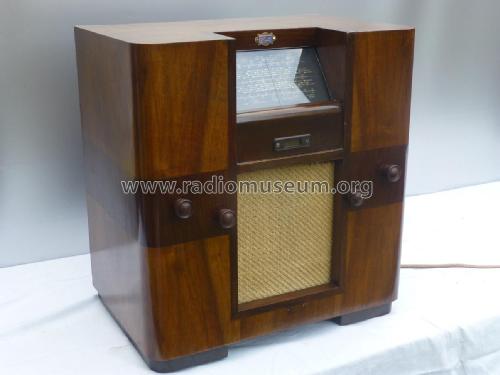

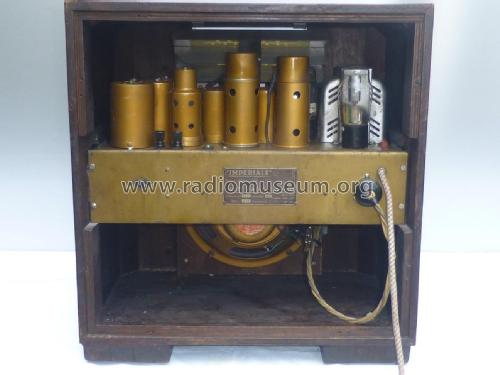

Imperiale ; Watt Radio; Torino (ID = 2485062) Radio
Watt Radio; Torino: Imperiale [Radio] ID = 2485062 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperiale, Watt Radio; Torino

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 41 80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 125; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Imperiale - Watt Radio; Torino
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 430 x 440 x 280 mm / 16.9 x 17.3 x 11 inch
Price in first year of sale 1'200.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Watt Radio; Torino
Here you find 173 models, 133 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
