Modulette

Modulette ; Watt Radio; Torino (ID = 598720) Radio

Modulette ; Watt Radio; Torino (ID = 1515827) Radio

Modulette ; Watt Radio; Torino (ID = 1727129) Radio
Modulette ; Watt Radio; Torino (ID = 840014) Radio Modulette ; Watt Radio; Torino (ID = 840015) Radio
Modulette ; Watt Radio; Torino (ID = 840016) Radio Modulette ; Watt Radio; Torino (ID = 840017) Radio
Modulette ; Watt Radio; Torino (ID = 840018) Radio Modulette ; Watt Radio; Torino (ID = 840019) Radio
Modulette ; Watt Radio; Torino (ID = 840020) Radio Modulette ; Watt Radio; Torino (ID = 1753680) Radio
Modulette ; Watt Radio; Torino (ID = 1753681) Radio Modulette ; Watt Radio; Torino (ID = 1753682) Radio
Use red slider bar for more.
Modulette ; Watt Radio; Torino (ID = 840014) Radio
Watt Radio; Torino: Modulette [Radio] ID = 840014 900x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model Modulette, Watt Radio; Torino

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 AA119 AA119 OA90 OC75 OC75 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 462/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Modulette - Watt Radio; Torino
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 160 x 70 mm / 9.4 x 6.3 x 2.8 inch
Notes Dotazione a richiesta per l'inserzione in autovettura.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 45'900.00 ITL
Mentioned in Catalogo ANIE 1965-66

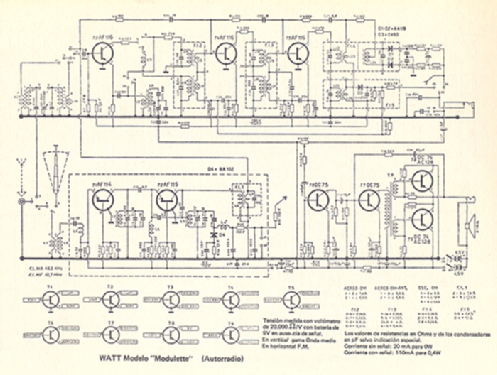

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
