• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98260

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 41 80

• Main principle
• Superheterodyne (common); ZF/IF 182 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 120; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

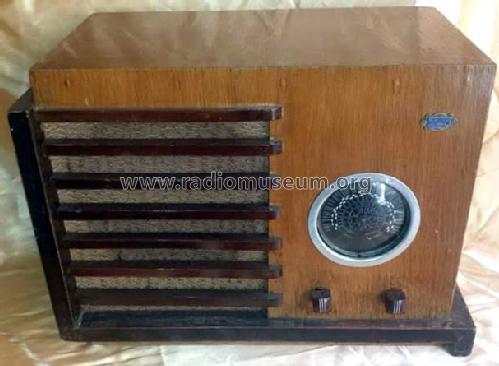

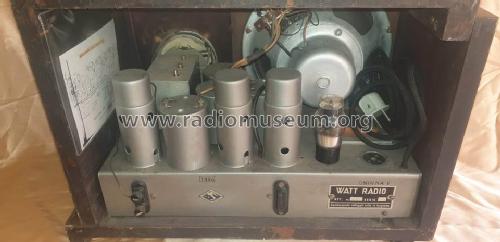

• Model: Ondina V - Watt Radio; Torino

• Shape
• Tablemodel, with any shape - general.

• Notes

• Controllo di tono. Ingresso per giradischi.

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)
