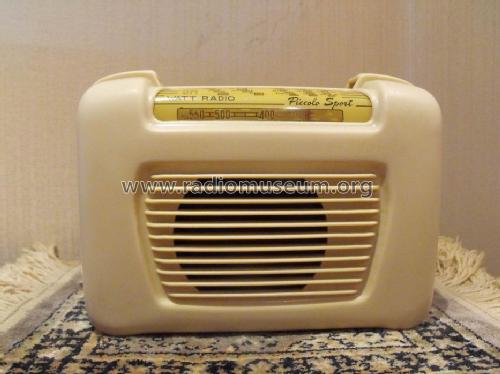

Piccolo Sport ; Watt Radio; Torino (ID = 1436970) Radio Piccolo Sport ; Watt Radio; Torino (ID = 1436971) Radio

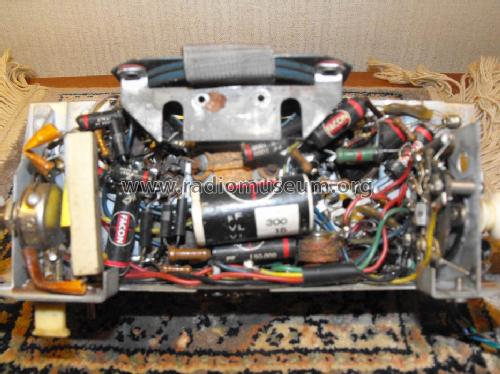

Piccolo Sport ; Watt Radio; Torino (ID = 1436972) Radio Piccolo Sport ; Watt Radio; Torino (ID = 1436973) Radio

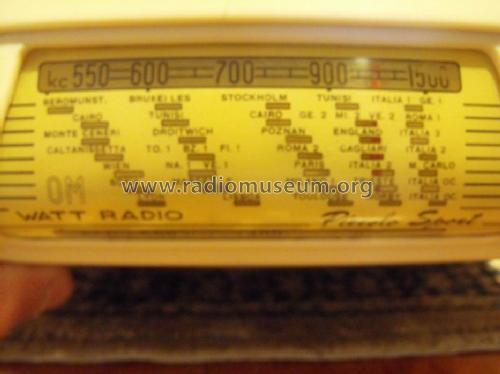

Piccolo Sport ; Watt Radio; Torino (ID = 1436974) Radio
Use red slider bar for more.

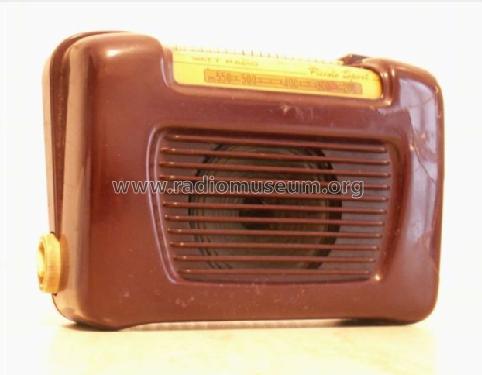

Piccolo Sport ; Watt Radio; Torino (ID = 692611) Radio
Watt Radio; Torino: Piccolo Sport [Radio] ID = 692611 623x484
Select picture or schematic to display from thumbnails on the right and click for download.
For model Piccolo Sport, Watt Radio; Torino

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1S5 3S4
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 127; 160 / 7,5 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Piccolo Sport - Watt Radio; Torino
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 160 x 110 mm / 8.7 x 6.3 x 4.3 inch
Notes

Funzionamento con alimentazione da rete (127 o 160 V con adattamento tramite resistenze di caduta), oppure con batterie da 7,5 V per i filamenti e da 67.5 V per la tensione anodica. Raddrizzatore ad una semionda da 130 V 100 mA.

Mobiletto identico al modello Piccolo Serie ANIE.

Source of data Guida Pratica Antique Radio V (2003)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
