Sabaudo II Fono

Sabaudo II Fono ; Watt Radio; Torino (ID = 1831676) Radio Sabaudo II Fono ; Watt Radio; Torino (ID = 1831677) Radio

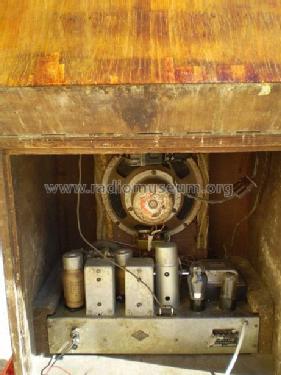

Sabaudo II Fono ; Watt Radio; Torino (ID = 1831678) Radio Sabaudo II Fono ; Watt Radio; Torino (ID = 1831680) Radio
Sabaudo II Fono ; Watt Radio; Torino (ID = 1831681) Radio Sabaudo II Fono ; Watt Radio; Torino (ID = 1831675) Radio
Use red slider bar for more.
Sabaudo II Fono ; Watt Radio; Torino (ID = 1831676) Radio
Watt Radio; Torino: Sabaudo II Fono [Radio] ID = 1831676 461x615
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sabaudo II Fono, Watt Radio; Torino

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: WE32 WE33 75 41 5Y3
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Sabaudo II Fono - Watt Radio; Torino
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

L'etichetta sullo chassis riporta la scritta SABAUDO II anche se lo schema circuitale e le valvole montate sono quasi identiche a quelle SABAUDO I fatta eccezione per la raddrizzatrice (una 5y3 in luogo di una 80) per la polarizzazione della we 33. Il mobile ricorda molto il modello Siderodina della stessa casa con l'aggiunta del giradischi.

Model page created by Simone Zuccaccia. See "Data change" for further contributors.
