Sconosciuto (Unknown)

Sconosciuto ; Watt Radio; Torino (ID = 1180670) Radio Sconosciuto ; Watt Radio; Torino (ID = 1180671) Radio
Sconosciuto ; Watt Radio; Torino (ID = 1180672) Radio Sconosciuto ; Watt Radio; Torino (ID = 1180673) Radio
Sconosciuto ; Watt Radio; Torino (ID = 1180674) Radio
Use red slider bar for more.

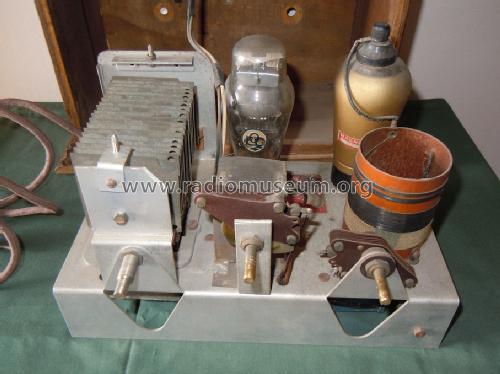

Sconosciuto ; Watt Radio; Torino (ID = 1180670) Radio
Watt Radio; Torino: Sconosciuto [Radio] ID = 1180670 890x667
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sconosciuto (Unknown), Watt Radio; Torino

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: WE25 WE30
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle TRF with regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 165 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Sconosciuto - Watt Radio; Torino
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 330 x 380 x 200 mm / 13 x 15 x 7.9 inch
Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
Source of data - - Data from my own collection
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 105, Jan.-Feb. 2012)

Model page created by Antonio Siciliano. See "Data change" for further contributors.
