Sonette

Sonette ; Watt Radio; Torino (ID = 2138045) Radio

Sonette ; Watt Radio; Torino (ID = 2138046) Radio
Use red slider bar for more.
Sonette ; Watt Radio; Torino (ID = 2138045) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF126 AF126 AF126 AF124 AF125 BC148 AC125 AC187 AC188 AA119 AA119 OA90 AA119
Main principle Superheterodyne (common); ZF/IF 462/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Sonette - Watt Radio; Torino
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 70 x 160 mm / 9.8 x 2.8 x 6.3 inch
Notes

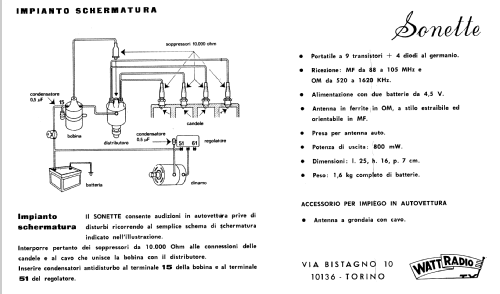

Accessorio per impiego in autovettura.

Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Mentioned in -- Original-techn. papers.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
