Super Imperiale

Super Imperiale ; Watt Radio; Torino (ID = 55366) Radio
Super Imperiale ; Watt Radio; Torino (ID = 55374) Radio
Super Imperiale ; Watt Radio; Torino (ID = 1224101) Radio
Use red slider bar for more.
Super Imperiale ; Watt Radio; Torino (ID = 1224101) Radio

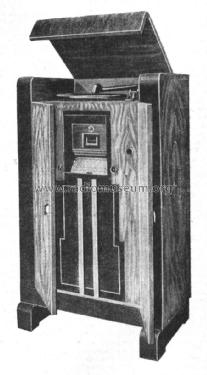

Watt Radio; Torino: Super Imperiale [Radio] ID = 1224101 660x1192
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Imperiale, Watt Radio; Torino:
pubblicita' dell'epoca
Country:  Italy
Manufacturer / Brand:  Watt Radio; Torino
Year: 1936–1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A7 78 75 57 56 45 45 5Z3
Main principle Superheterodyne (common); ZF/IF 125 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Model: Super Imperiale - Watt Radio; Torino
Material Wooden case
Shape Console: Chairside Radio.

Indicatore ottico di sintonia. Controllo di tono.
Tuning meter.

Source of data Guida Pratica Antique Radio (1) 1999
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)
Literature/Schematics (2) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
