• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Electric (Electrical) Co. (Teletalk); Racine (WI)

• Year
• 1954 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 133563

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 5879 6AV6 6AV6 6V6GT 6AQ5 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 115/230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

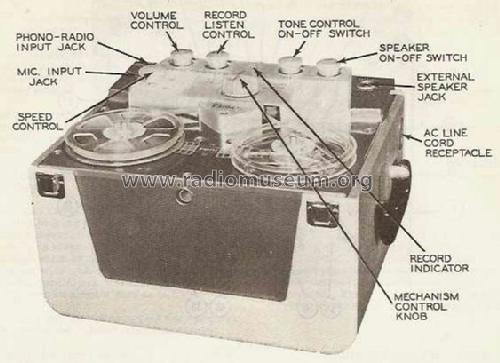

• Model: Ekotape 206 - Webster Electric Electrical Co

• Shape
• Tablemodel, with any shape - general.

• Notes

• Webster Ekotape 206, Open-reel tape recorder;
  dual track, monaural, 3.75 & 7.5 ips, up to 7 inch reels. 50 cycles model! SAMS Photofact, date 11-52, set 185, folder 6 features the Webster models 205 and 206 as the same schematic. Model 205 is the power supply 117 Volt 60 cycles. Model 206 is the power supply 115/230 Volt 50 cycles.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (1-1954 Set 228 Folder 8)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
