Super Duo two button tuning - AC
Weco N.V. Radiofabriek; Amsterdam
- Country
- Netherlands
- Manufacturer / Brand
- Weco N.V. Radiofabriek; Amsterdam
- Year
- 1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242503

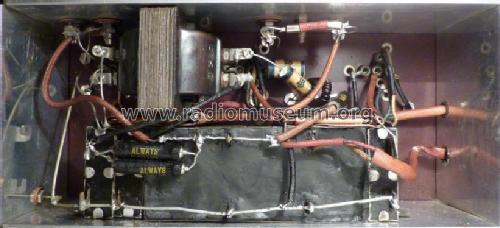

Picture taken in Olens Radio Museum (B).
- Number of Tubes
- 4
- Valves / Tubes
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Duo [two button tuning - AC] - Weco N.V. Radiofabriek;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This 1930 Weco model Super Duo is tuned with two buttons. The 1931 model with the same name is tuned with one button only.
In the Biedermann catalogue this model got catalogue number 5015. There is also a version 5014 with an electromagnetic loudspeaker.
The DC version of this model has catalogue number 5024 in case of an electromagnetic loudspeaker and 5025 for an electrodynamic loudspeaker.
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
- Other Models
-
Here you find 48 models, 39 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Weco N.V. Radiofabriek; Amsterdam
Collections
The model Super Duo is part of the collections of the following members.
