• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62805

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

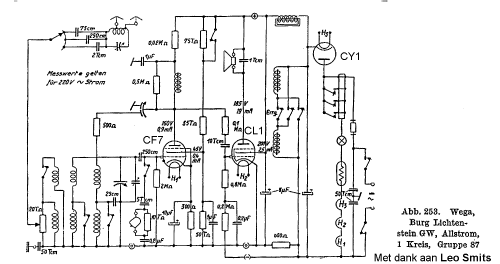

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• CF7 CL1 CY1

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Burg Lichtenstein GW - Wega, Württembergische Radio-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 280 x 230 mm / 17.3 x 11 x 9.1 inch

• Notes
• Audion mit Rückkoppelung

• Price in first year of sale
• 158.00 RM

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Katalog Radio-Zentrale Prohaska 1928

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
