Color 3020

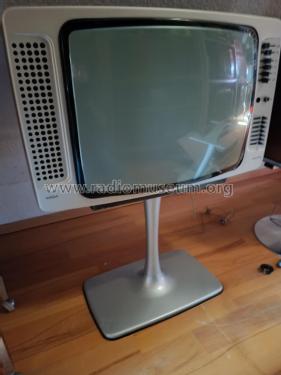

Color 3020; Wega, (ID = 2477968) Television

Color 3020; Wega, (ID = 2477969) Television

Color 3020; Wega, (ID = 2477970) Television

Color 3020; Wega, (ID = 2477971) Television

Color 3020; Wega, (ID = 2477972) Television

Color 3020; Wega, (ID = 2477973) Television

Color 3020; Wega, (ID = 2477974) Television

Color 3020; Wega, (ID = 2477975) Television

Color 3020; Wega, (ID = 2477976) Television

Color 3020; Wega, (ID = 2477977) Television
Color 3020; Wega, (ID = 2448006) Television Color 3020; Wega, (ID = 2448007) Television
Color 3020; Wega, (ID = 2448094) Television
Use red slider bar for more.
Color 3020; Wega, (ID = 2448006) Television

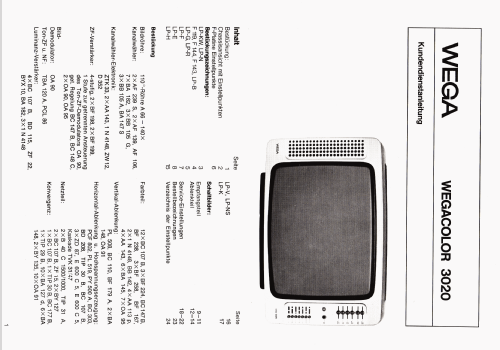

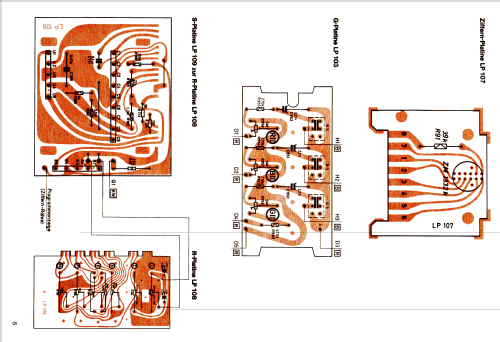

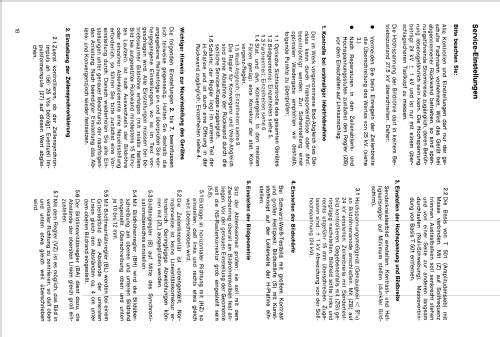

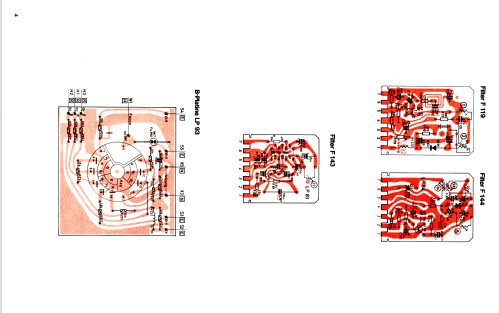

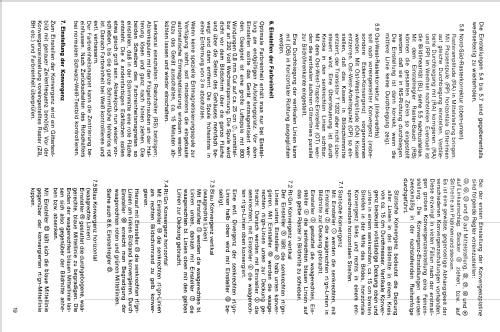

Wega,: Color 3020 [Television] ID = 2448006 1000x849
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color 3020, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach:
Quelle: Handbuch des Rundfunk- und Fernseh-Grosshandels 1971/72 (VDRG), S.A40

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1971/1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 6: PCL86 PL508 PCF802 PL519 PY500A A66-140X
Semiconductors (the count is only for transistors) 56: AF239 AF139 AF106 BF198 BF199 BC147 BC148 TBA120 BC107 BD115 BF224 BF238 BF258 BF167 BC110 BF179 BC303 BD208 TIP30 TIP31 BC177 TIP29 BB105 BA147 ZTK33 AA143 1N4148 ZW12 OA90 OA95 ZF22 BYX10 BA182 BB142 AA113 BA145 BA148 OA91 ZD87 E600C5 B40C1500 ZF15 BY127 BA127 BY135
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Color 3020 - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 780 x 510 x 460 mm / 30.7 x 20.1 x 18.1 inch
Notes

Farb-TV mit 66cm Bildröhre, PAL, 7 mechanische Programmtasten, VHF-/UHF Tuner nach CCIR B/G, Programmanzeige durch Ziffernröhre (Nixie).

1x Hochspannungs-Kaskade TVK31

Jeder Halbleitertyp ist einmal gelistet.

Gehäuse: Metallic, Weiss oder Anthrazit oder Sand.
Passende Kabel-Fernbedienung: Wega 991 für Lautstärke, Helligkeit und Farbsättigung, DM64,-.

Siehe auch Wega Color 3020-1 (1972/73) und Wega Color 3020B mit Ultraschall-FB als erstes reines Halbleiter-Chassis ab 1973/74.

Price in first year of sale 2'480.00 DM
