Wega,: Herold 1001 [Radio] ID = 322010 680x476

Select picture or schematic to display from thumbnails on the right and click for download.

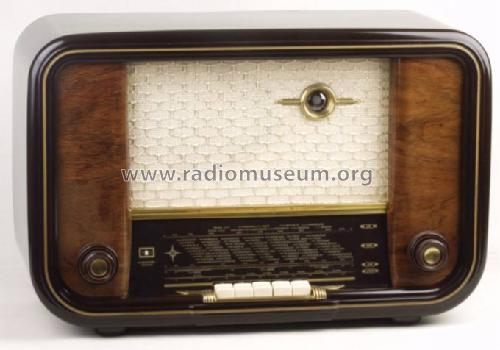

For model Herold 1001, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:

Germany

Manufacturer / Brand:

Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

alternative name

Württemb. Radio-Ges.mbH; Stuttgart

Year: 1952–1954

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

6: ECC81 ECH81 EF85 EABC80 EM11 EL41

Main principle	to an article Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage	Alternating Current supply (AC)
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org	Model: Herold 1001 - Wega, Württembergische Radio-
Material	Bakelite case
Notes	5 Tasten
Source of data	Radiokatalog Band 1, Ernst Erb
Picture reference	Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.

All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
Here you find 658 models, 579 with images and 380 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Werner Riethmüller (D)

Collection of Bernhard Beier (A)

Collection of Werner Wussow (D)

Collection of Gerhard Wickern (D)

Forum contributions about this model

Wega,: Herold 1001

Threads: 1 | Posts: 3

Hits: 2642 Replies: 2 wega: Wega Radio - Kondensatorenbezeichnung
Rainer Bogenschütz 17.May.08	1 wega: Wega Radio - Kondensatorenbezeichnung Hallo miteinander ! Kann mir jemand sagen was die Kondensatorbezeichnung (hier bei einem Wega-Radio) 25T oder 2,5T bedeuted oder wie man es umrechnet. Habe im Forum nichts gefunden. Grüße aus Albstadt Rainer Bogenschütz
Gerhard Heigl 18.May.08	2 No subject Diese Bezeichnung wurde in den 50er und 60er Jahren gerne verwendet. Das "T" steht für Tausend (1000). 2,5T = 2500pF = 2,5nF. Verwendet wurde auch TpF, hier gilt das gleiche. MfG. g.h.
Rainer Bogenschütz 18.May.08	3 No subject Hallo Herr Heigl ! Danke für ihre freundliche Antwort. Sie haben mir sehr geholfen. mfG Rainer B.
