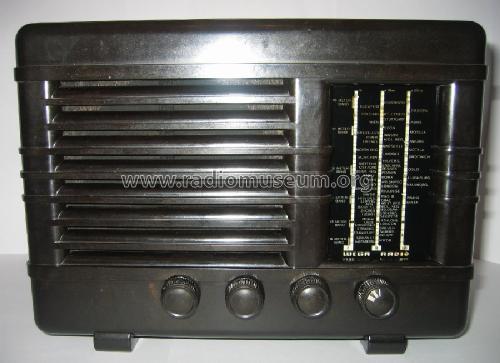

Perle 864GW

Perle 864GW; Wega, (ID = 8232) Radio
Perle 864GW; Wega, (ID = 21908) Radio Perle 864GW; Wega, (ID = 70514) Radio
Perle 864GW; Wega, (ID = 90174) Radio Perle 864GW; Wega, (ID = 1185) Radio
Perle 864GW; Wega, (ID = 179852) Radio Perle 864GW; Wega, (ID = 1046835) Radio
Perle 864GW; Wega, (ID = 1046836) Radio Perle 864GW; Wega, (ID = 1046837) Radio
Perle 864GW; Wega, (ID = 1046838) Radio Perle 864GW; Wega, (ID = 1046839) Radio
Use red slider bar for more.
Perle 864GW; Wega, (ID = 21908) Radio
Wega,: Perle 864GW [Radio] ID = 21908 604x420
Select picture or schematic to display from thumbnails on the right and click for download.
For model Perle 864GW, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Perle 864GW - Wega, Württembergische Radio-
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 270 x 200 x 145 mm / 10.6 x 7.9 x 5.7 inch
Notes Ch=642GW [572]
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Price in first year of sale 315.00 DM
Source of data Rufag GmbH 1949 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4914)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
