• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27751

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

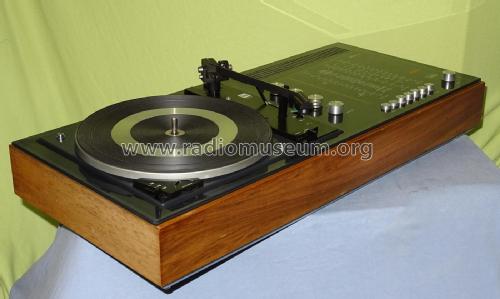

• Model: 3202 Stereo [Nussbaum] - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 715 x 186 x 327 mm / 28.1 x 7.3 x 12.9 inch

• Notes
• Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 6 W (Sinus);
  Phono-Chassis = Dual 1210 mit Kristallsystem CDS640.

• Net weight (2.2 lb = 1 kg)
• 14.4 kg / 31 lb 11.5 oz (31.718 lb)

• Price in first year of sale
• 698.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970
