• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1965–1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3848

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF124 AF121 AF121 AF121 AC170 AC171 AC117 AC117

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

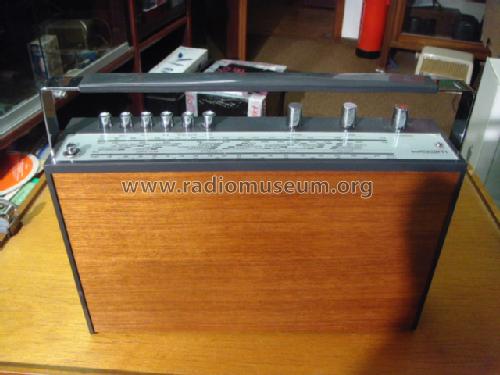

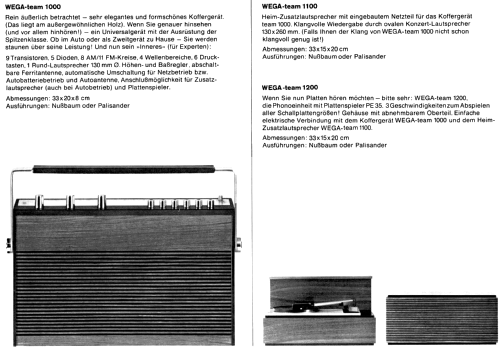

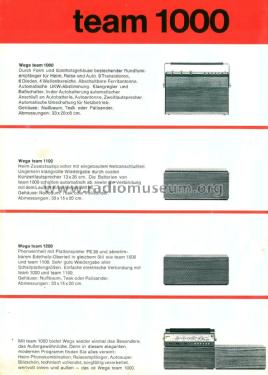

• Model: Team 1000 - Wega, Württembergische Radio-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 195 x 80 mm / 12.8 x 7.7 x 3.1 inch

• Notes

• Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie;
  Netzbetrieb in Verbindung mit Lautsprecherbox Team 1100 möglich.

  Das VDRG-Handbuch 1965/66 gibt 12 FM- und 8 AM-Kreise an, was falsch ist.
  Schema, VDRG 1966/67 und orig. Firmenprospekt zeigen 11 FM-Kreise.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Source of data
• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 667 models, 592 with images and 389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
