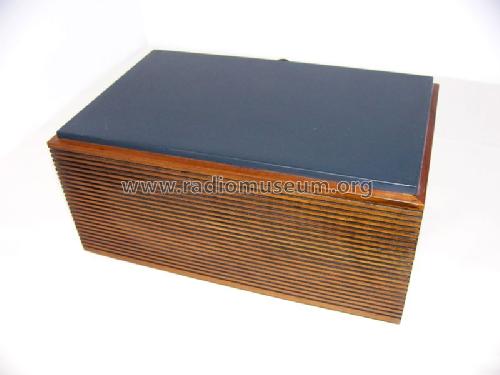

Team 1100; Wega, (ID = 1339956) Speaker-P
Wega,: Team 1100 [Speaker-P] ID = 1339956 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Team 1100, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1965/1966 Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) 1: AD152
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Team 1100 - Wega, Württembergische Radio-
Material Wooden case
Dimensions (WHD) 325 x 152 x 195 mm / 12.8 x 6 x 7.7 inch
Notes

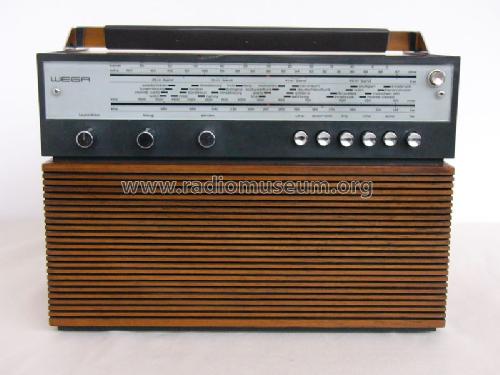

Lautsprecherbox mit eingebautem Netzteil für Team 1000 zur Verwendung als Heimgerät.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 69.00 DM
Source of data Handbuch VDRG 1965/1966

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
