V3840; Wega, (ID = 482743) Ampl/Mixer
Wega,: V3840 [Ampl/Mixer] ID = 482743 573x352
Select picture or schematic to display from thumbnails on the right and click for download.
For model V3840, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1976/1977 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 116-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: V3840 - Wega, Württembergische Radio-
Shape Book-shelf unit.
Dimensions (WHD) 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch
Notes

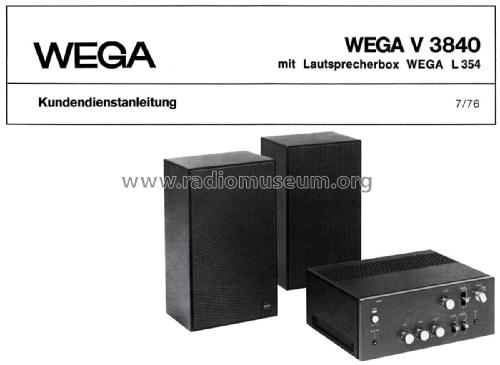

Wega HiFi-Stereo-Verstärker V3840.
Ausgangsleistung: 2× 30 W (Sinus);
Zwei Lautsprecherboxen L354 im Lieferumfang.

Source of data Handbuch VDRG 1976/1977
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
