Wegavision 2000

• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1963–1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 89936

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

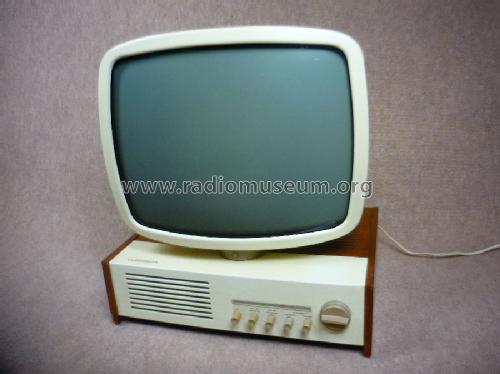

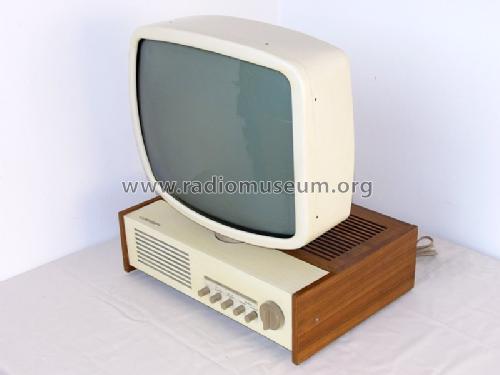

• Picture

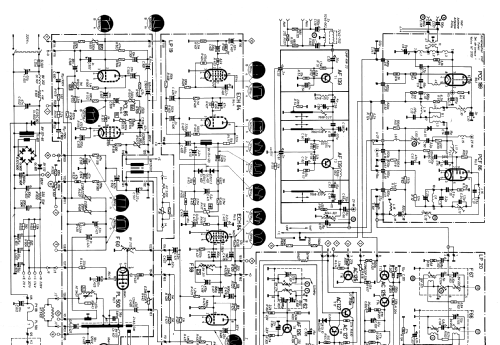

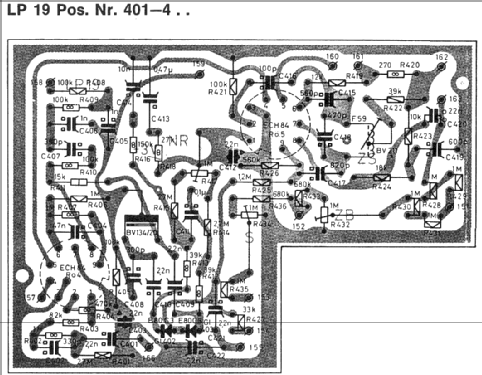

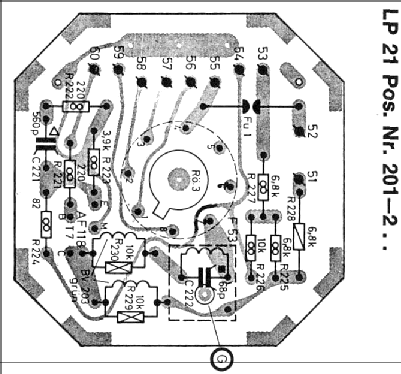

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• PCC189 PCF86 ECH84 PCL85 ECH84 PL500 PY88 DY86 19BRP4 or R1902

• Number of Transistors
• 18

• Semiconductors
• AF139 AF139 AF102 AF106 AF106 AF126 AC125 AC125 AC127 AC125 AC127 AC127 AF118 AF126 AF126 AC125 AC127 AD139 OA91 OA90 AA112 E80C3 2,8St10 1,4-St10 BY112 E125C80 B30C600

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Wegavision 2000 - Wega, Württembergische Radio-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 475 x 530 x 365 mm / 18.7 x 20.9 x 14.4 inch

• Notes

• Empfangsbereiche: VHF Band I und III (Kanal 2-11), UHF Band IV/V (Kanal 21-60). Sonderbauform mit aufgesetzter drehbarer 19" Bildröhre. Anschluss für Aussenlautsprecher.

  Gehäuse: Nussbaum mit perlweisser Front oder Teak.
  Preis in 1964/65:  DM 1'320,-

  Jeder Diodentyp ist einmal gelistet.

• Net weight (2.2 lb = 1 kg)
• 20.5 kg / 45 lb 2.5 oz (45.154 lb)

• Price in first year of sale
• 1,259.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Mentioned in

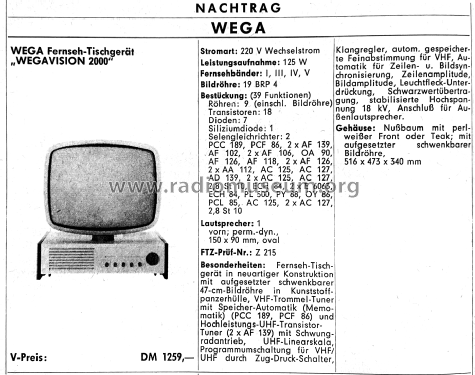

• Handbuch RFP 1963 (S.464, Nachtrag)

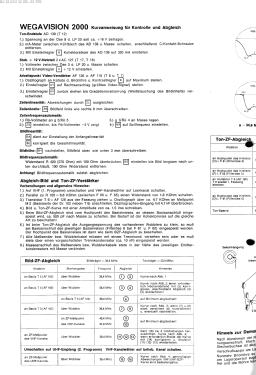

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 667 models, 592 with images and 389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
