BY112

Information - Help
ID = 60003

Country:
Germany
Brand: AEG (Radios) Allg.Elektricitäts-Ges.
Tube type:  Solid-State-Diode   Power-supply
Identical to BY112

Base Wires
Filament Solid State
Description

Silicon rectifier 800 V, 0.5 A


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
12 x 15 x 5 mm / 0.47 x 0.59 x 0.20 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70

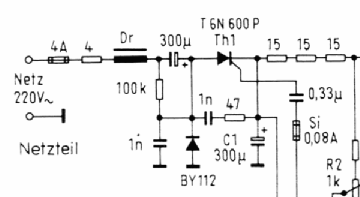

  BY112: Funkschau 16/73 S.608
Egon Strampe

BY112: G.S.
Günther Stabe † 19.8.20



Usage in Models 1= 1964 ; 1= 1965?? ; 1= 1967 ; 1= 1969 ; 1= 1972

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5
