• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1964–1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110193

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC189 PCF801 EF80 EF80 EF80 PCL84 EF80 PABC80 PL84 ECH84 ECH84 PCL85 PL500 PY88 DY86 23CLP4 or 23DJP4 or 23DHP4 or A59-16W

• Number of Transistors
• 2

• Semiconductors
• AF139 AF139 E50C5 E50C5 OA95 BY100

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Wegavision 744 - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 705 x 510 x 340 mm / 27.8 x 20.1 x 13.4 inch

• Notes
• VHF/UHF. Untergestell aus Holz oder Stahlrohr gegen Mehrpreis (69,- DM).

• Net weight (2.2 lb = 1 kg)
• 33.5 kg / 73 lb 12.6 oz (73.789 lb)

• Price in first year of sale
• 1,398.00 DM

• Source of data

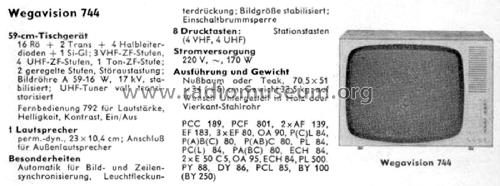

• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
