• Year
  • 1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 128308
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

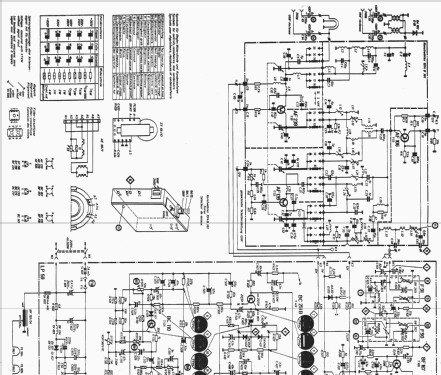

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 16
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Wegavision 772 L [dunkel poliert] - Wega, Württembergische Radio-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 670 x 475 x 390 mm / 26.4 x 18.7 x 15.4 inch
  • Notes
  • 61cm s/w TV, CCIR B/G VHF-/UHF Tuner mit 6 Programmtasten, 11 Dioden, optionale Kabelfernbedienung Typ 793 54 DM, passendes Drehgestell Typ 700 69 DM, dunkel poliert.
  • Net weight (2.2 lb = 1 kg)
  • 25.5 kg / 56 lb 2.7 oz (56.167 lb)
  • Price in first year of sale
  • 598.00 DM
  • Source of data

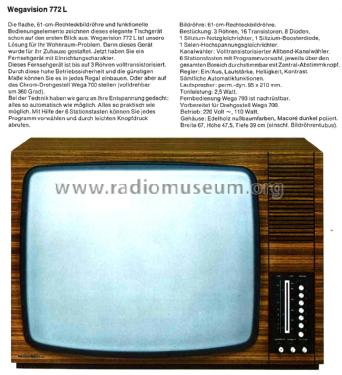

  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
