- Country
- Australia
- Manufacturer / Brand
- Weldon (brand), Weldon Electric Supply Co. and Bloch & Gerber Ltd.; Sydney, NSW
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171081
-
- alternative name: Bloch & Gerber
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

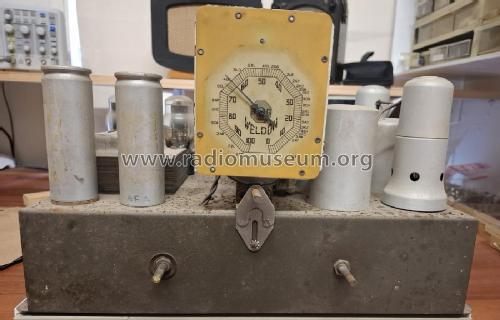

- Model: 8/35 - Weldon brand, Weldon Electric
- Shape
- Console, Lowboy (legs < 50 %).
- Price in first year of sale
- 20.00 Aus£
- Literature/Schematics (1)
- Radio Trade Annual 1939 P357.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
