• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1946 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 65562

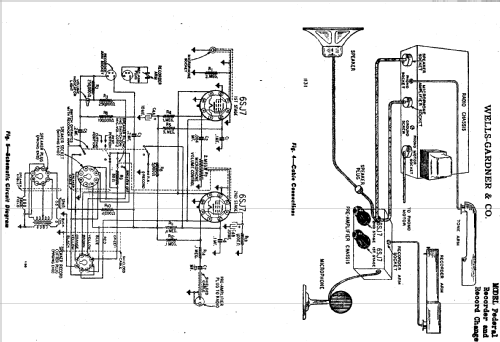

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6SJ7 6SJ7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• from Radiomuseum.org
• Model: Federal Recorder & Record Ch. - Wells-Gardner & Co.; Chicago

• Notes
• Disc changer and recording outfit. Add on to a Radio set. Allows to make records from Radio or Microphone or from an external Record Player. Can also serve as a Public Address system, using the Mike through the Radio Loudspeaker. Mike Preamp. is included.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943
