• Country
• United States of America (USA)

• Manufacturer / Brand
• Wells-Gardner & Co.; Chicago

• Year
• 1953 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 361171

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BQ7 6J6 6CB6 6CB6 6CB6 6AL5 12AT7 6AH6 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6BE6 6BL7GT 6AL5 6SN7GTA 6BQ6GT 6W4GT 1B3GT 5U4G 21MP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Truetone 321MS31C-224 - Wells-Gardner & Co.; Chicago

• Shape
• Console with any shape - in general

• Notes

• Wells-Gardner model 321MS31C-224 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 25A1095 and picture tube 21MP4.



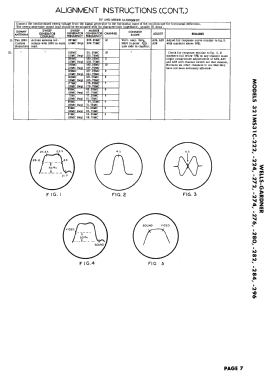

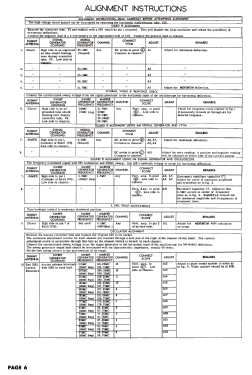

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 194, folder 14, dated 2-53)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
