• Country
• Germany

• Manufacturer / Brand
• Weltfunk GmbH & Co. KG; Mainz

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237109

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; AA: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

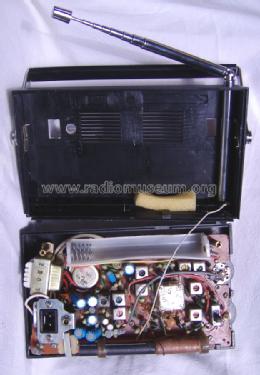

• Model: AM/FM 10-Transistor - Weltfunk GmbH & Co. KG; Mainz

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 120 x 50 mm / 7.1 x 4.7 x 2 inch

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
